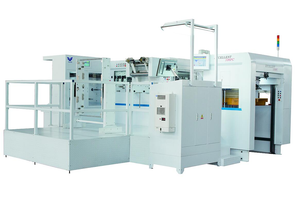

TYM1300-H Automatic Foil Stamping &Die-Cutting Machine

TYM1300-H automatic foil stamping and die-cutting machine is mainly used for the die-cutting, creasing, foil stamping, cold and hot embossing of cigarette box, drug box, wine box and label in the packing and decorating industries. This kind of machine is a new generation of foil stamping series on the basis of TYM1020-H, it’s incorporated with fully automatic feeding, die-cutting, stamping, delivering foil, delivering sheet, up-press, down-press, leap step, counting, heating, pre-heating, obstacle indicating, checking and measuring. It has the features of large range of paper processing, easy operating, reliability, high speed, press and precision.
  • TYM1300-H
  • UPG
Availability:
Quantity:

TYM1300-H automatic foil stamping and die-cutting machine is mainly used for the die-cutting, creasing, foil stamping, cold and hot embossing of cigarette box, drug box, wine box and label in the packing and decorating industries. This kind of machine is a new generation of foil stamping series on the basis of TYM1020-H, it’s incorporated with fully automatic feeding, die-cutting, stamping, delivering foil, delivering sheet, up-press, down-press, leap step, counting, heating, pre-heating, obstacle indicating, checking and measuring. It has the features of large range of paper processing, easy operating, reliability, high speed, press and precision.


  • Longitudinal and lateral foil stamping devices are equipped which make foil stamping process more reasonable.

  • The longitudinal foil-delivering unit can be pulled out when you install the foil, convenient for operation.

  • Manual foil-stringing device is used to improve the efficiency of work.

  • The registration of foil stamping steel plate adopts side-press registering structure, which improves the accuracy of repeat registration.

  • Pneumatic plate-locking device is equipped which improves the level of automation.

  • The main driving chain adopts big-pitch chains, which reduce the inertia of running, improves stability of precision. Force moment controller is used to improve the coefficient of safety.

  • The front and back registration of gripper bars adopt adjustable device, make it convenient to adjust the precision of front lay.

  • The front lay adopts numerical control instead of former manual adjustment, convenient and audio-visual.

  • Cooling device for lubricating oil is added which reduces the wear of parts when they are heated, ensures the constant pressure of die-cutting and foil stamping.

  • Cooling device for electrical box is added which improves the using lifetime of electrical parts.

Max. Sheet   Size

1300x960mm

Min. Sheet   Size

500x450mm

Max.   Die-Cutting Speed

6000s/h

Max.   Stamping Speed

5000s/h

Max. Pressure

500T

Quantity Of   Heating Area

20

Power Of   Heating Area

25.2kw

Max.   Die-Cutting Size

1290x950mm

Max. Foil   Stamping Size

Longitudinal:1290x950mm

Lateral:1290x750mm

Quantity Of   Foil Shaft

Longitudinal:4pcs

Lateral:3pcs

Max. Foil   Diameter

200mm

Die-Cutting   Precision

≤±0.125mm

Foil   Stamping Precision

≤±0.125mm

Max.   Feeding Pile

1350mm

Max.   Delivery Pile

1300mm

Sheet   Thickness

Corrugated Paper ≤ 4mm

Cardboard   0.1-1 .5mm

Net Weight

23T

Main Motor   Power

15kw

Total   Power

50kw

Overall   Dimension

7600X4000X2450mm
